MEGCRETe™ product · Acoustics
MEGCRETe™ Sound
Quiet walls and floors, one layer sooner.
Why MEGCRETe™ Sound
The sound layer, already on the board.
Two products, one lift

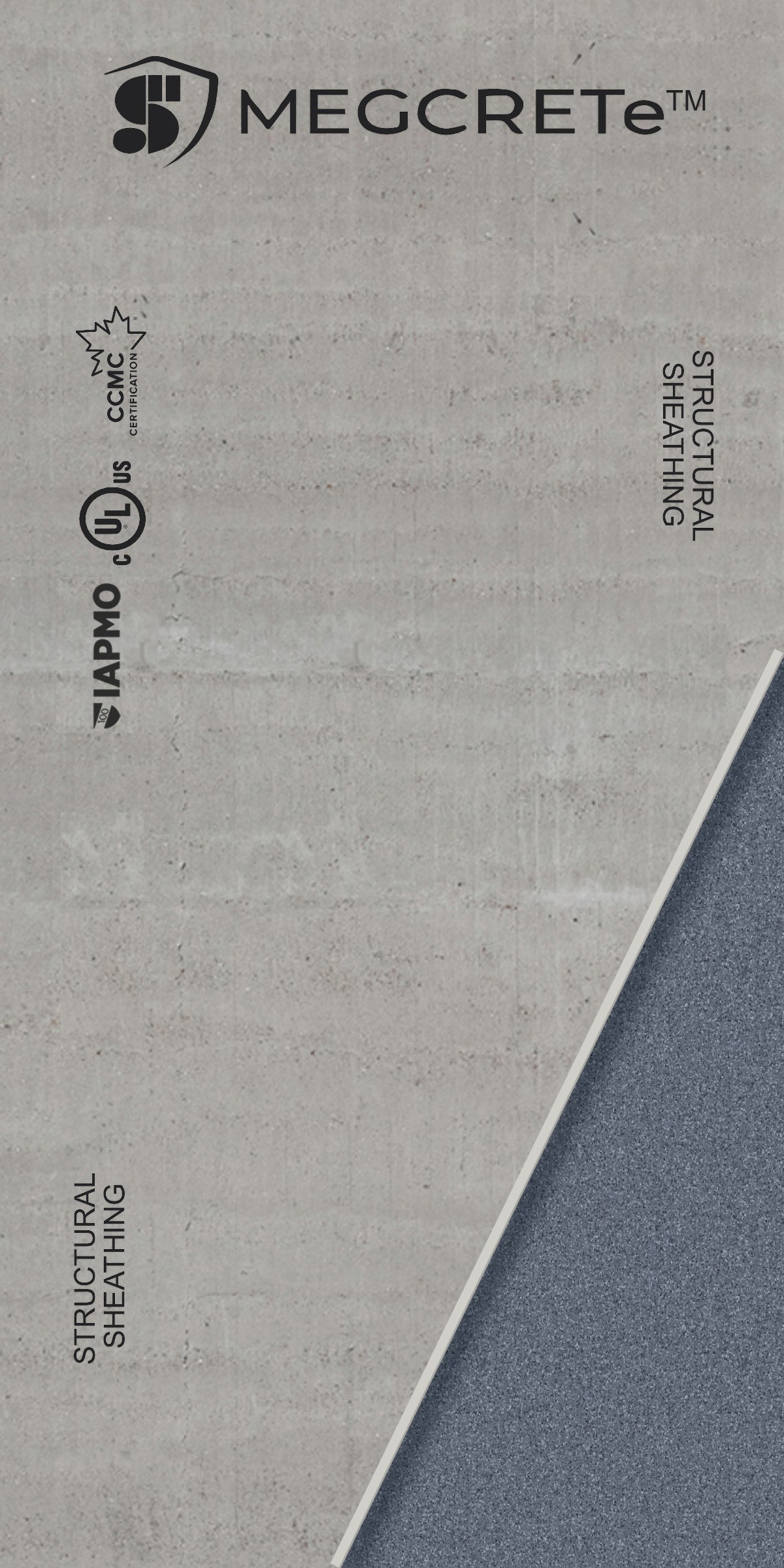

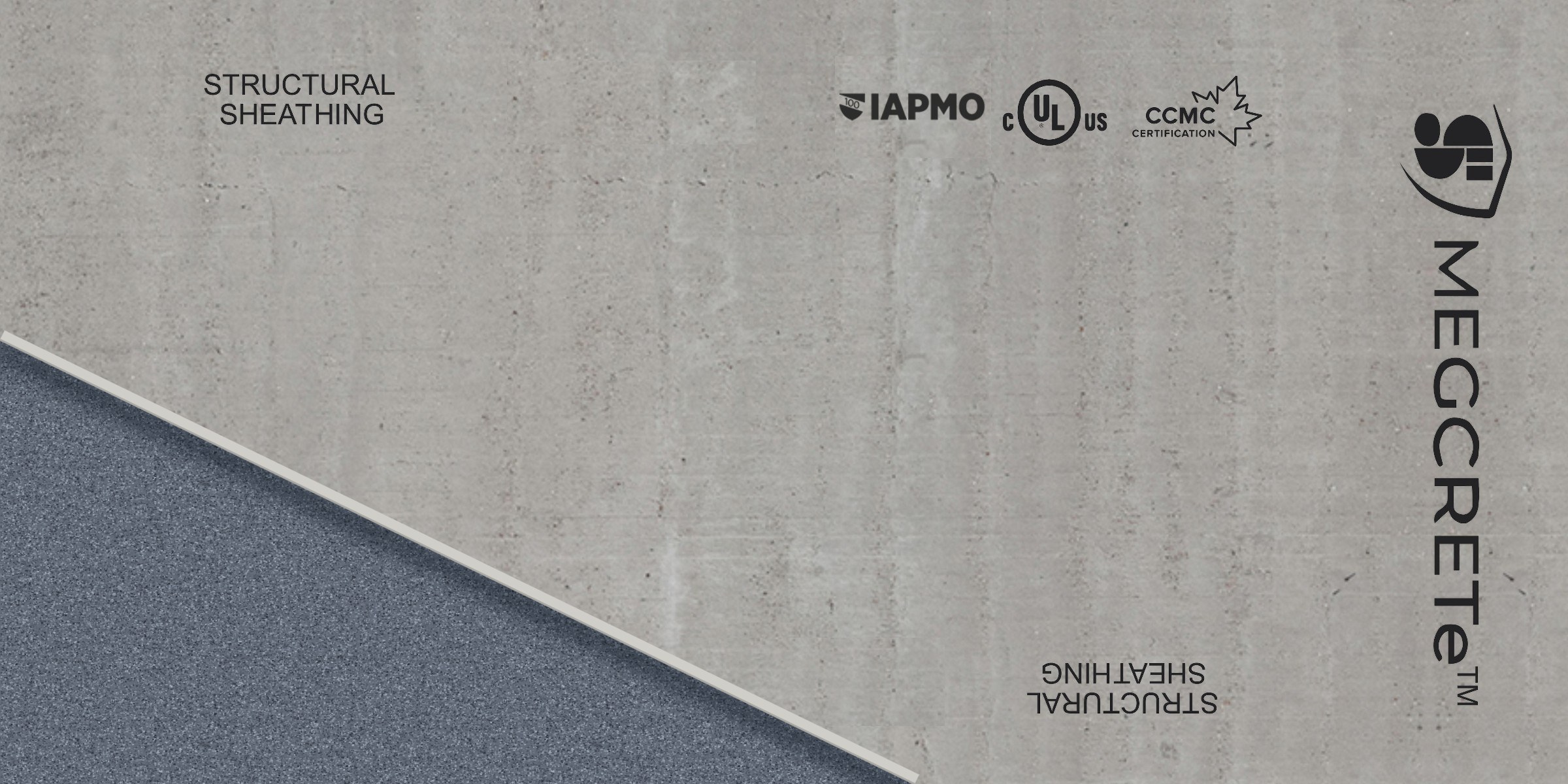

A high-density acoustic mat factory-laminated to the panel, the sound layer and the sheathing go up together, cutting a full trade out of the schedule.
Impact and airborne isolation
Quiets footfall and voice transfer through wall and floor assemblies in wood, steel, and concrete construction.
Non-combustible face
The same MgO panel as every MEGCRETe™ product, fire, water, mold, and impact resistant.
Ready for any finish
Tile, LVP, engineered flooring, or any wall finish, straight over the panel.
Where it works Multi-family & hotelsMedia roomsMovie & broadcast studiosSound studiosPodcast roomsOfficesSchools & careLuxury residential
Sound performance
What to expect.
Walls
InterpolatedSTC 38–51
Bare single-stud partitions sit at the low end; adding batt insulation and resilient channel carries the assembly to the top of the range.
Floors
InterpolatedIIC 50–73
Finish-dependent, LVP with a pad lands mid-range for residential and multi-unit; carpet tile tops out the scale for the quietest floors.
Interpolated estimates for typical assemblies, final values depend on the full build-up. Talk to us about your assembly.
Sizes & specs
Sized for the job.
The acoustic mat adds 1/4″ to the MgO panel thickness.
Thicknesses
MgO CORE → WITH MAT 3/8″ (10 mm) 5/8″
1/2″ (12 mm) 3/4″
5/8″ (15 mm) 7/8″
3/4″ (18 mm) 1″
Panel dimensions
3′ × 5′
4′ × 8′
4′ × 9′
4′ × 10′
4′ × 12′
From 915 × 1525 mm (3′ × 5′) up to 1220 × 3660 mm (4′ × 12′). Shown to scale.
Same formats as MEGCRETe™ Structural Sheathing, cut and fastened the same way.
